Roadmaster 523193-5 Direct-Connect Baseplate Kit (2018-2024 Chevrolet Equinox)

Flat tow your Chevrolet Equinox behind your motorhome with clean styling, maximum structural rigidity, and easy hookup using the authentic Roadmaster 523193-5 Direct-Connect Baseplate Kit (EZ5 style). Custom-engineered specifically for 2018–2024 Chevrolet Equinox models, this direct-connect baseplate integrates directly into the vehicle frame structure for optimal strength and discreet front-end appearance.

Roadmaster Direct-Connect baseplates eliminate the need for a separate quick-disconnect crossbar—allowing motorhome-mounted Roadmaster tow bars (such as the Nighthawk, Sterling, Falcon All-Terrain, or Blackhawk) to pin directly into the vehicle-mounted brackets. When not actively towing, simply twist and remove the front extension arms using the built-in quick-release pull rings to restore your Equinox to its clean factory profile.

Key Features & Engineering Highlights:

• Direct-Connect Streamlined Design: Connects directly to compatible Roadmaster tow bars without requiring a bulky crossbar across the front bumper.
• Removable Arms: Easy twist-lock arms click firmly into place for towing and disconnect in seconds for everyday driving.
• Computer-Tested Structural Integrity: Subjected to extensive Finite Element Analysis (FEA) computer testing to withstand extreme dynamic towing stresses and road shock.
• Clean OEM Appearance: Custom engineered to fit existing chassis mounting points behind the front fascia with minimal exterior trimming and zero welding required.
• Durable Protective Finish: Coated in heavy-duty baked-on black powder coat to resist chipping, gravel impact, road salt, and harsh weather.
• Professional Installation & Upfitting: Expert flat-tow rigging, baseplate installation, diode wiring, and auxiliary braking system setup available at Truck Guy Upfitters (510 W North 1st St, Seneca, SC 29678).

Specifications & Vehicle Compatibility:

• Manufacturer: Roadmaster Inc.
• Manufacturer Part Number: 523193-5 (SKU: RM-523193-5 / Alt: R6L5231935)
• UPC: 758306319080
• Style: Direct-Connect Baseplate with Removable Extension Arms (EZ5)
• Vehicle Fitment: 2018–2024 Chevrolet Equinox (including 1.5L Turbo, 1.6L Diesel, and 2.0L Turbo front-wheel drive and all-wheel drive models).
• Tow Bar Compatibility: Compatible with all Roadmaster motorhome-mounted tow bars (Falcon series, Sterling series, Nighthawk, Blackhawk series). Not compatible with tow bars requiring a hitch ball or non-Roadmaster crossbar-dependent bars.

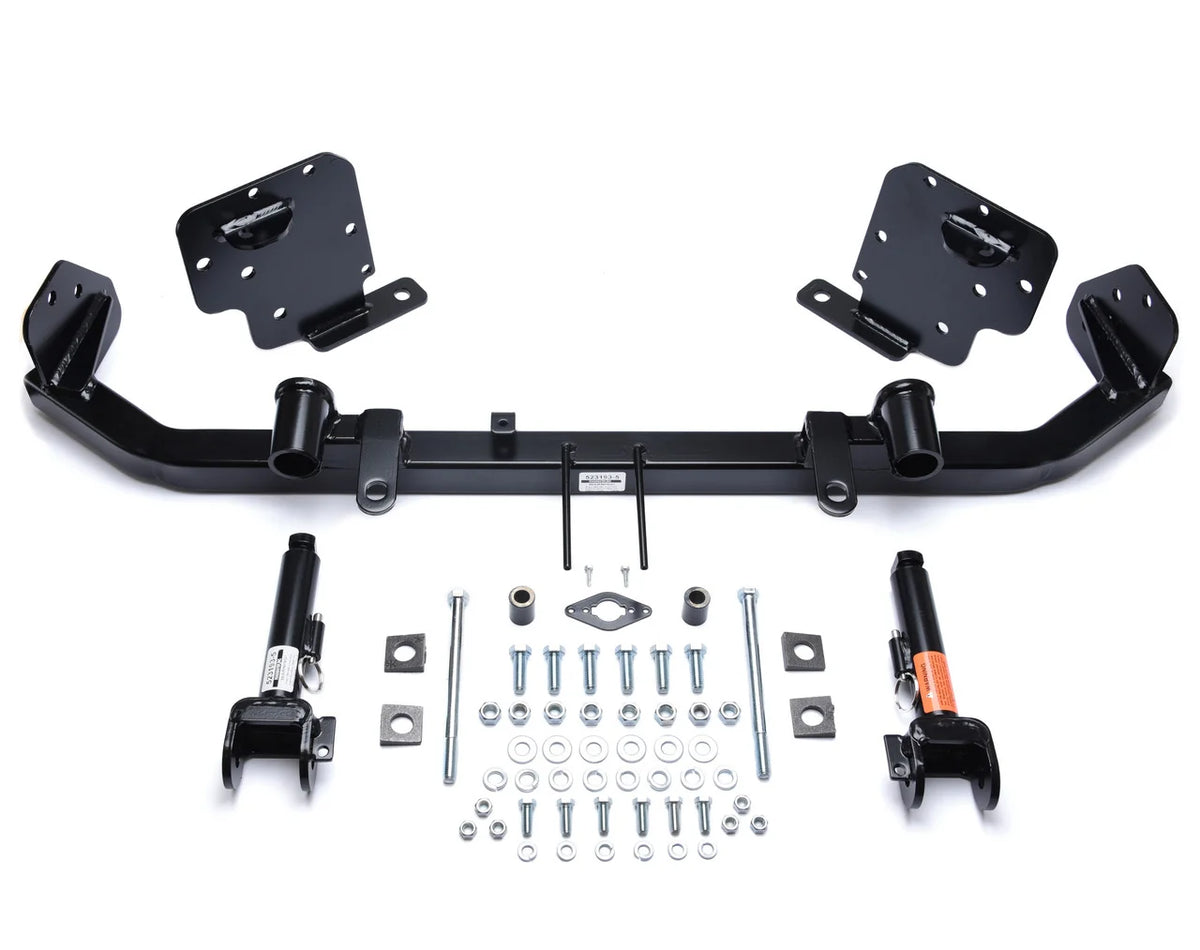

• Included: Driver & passenger baseplate bracket assemblies, removable arms, heavy-duty mounting hardware pack, safety cable attachment tabs, and detailed installation manual.
